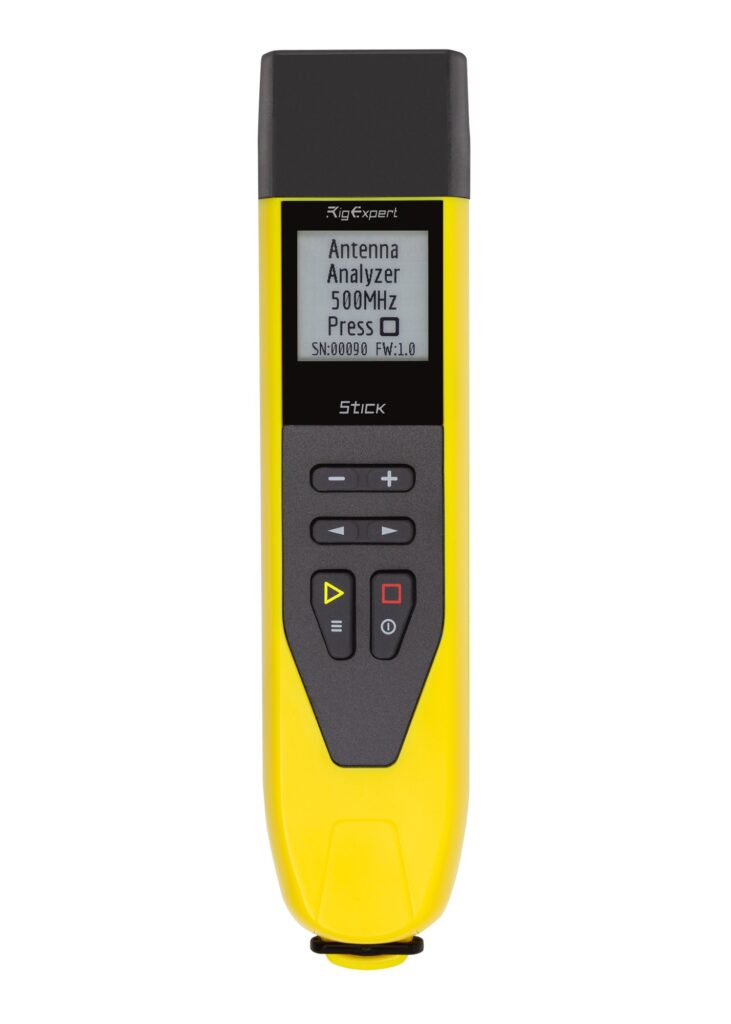

Stick 500
Specifications

Frequency range

0.1 to 500 MHz

Frequency entry

1 kHz

Measurement for systems

12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm

SWR measurement range

1 to 10 in chart modes
1 to 100 in numerical modes

R and X range

0… 10000, -10000… 10000

Display modes

HAM (a quick check of single band antenna)
Multé (a quick check of multiband antennas)
OSL calibration mode
SWR chart, 100 points
SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency

RF output

Connector type: UHF (SO-239)
Output power: -10 dBm (at a load of 50 ohms)
Output signal shape: square

Power

One lithium-ion battery 3.7 V type 18650
When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Сharge time: 3 hours when using a charger

Interface

2 × 3 keys on the waterproof keyboard
High contrast E Ink display, 200 × 200
Menus and help screens in English (by default), Japanese
v.4.2 BLE Single Mode, Class B

Operating temperature

-15° … 40 ° C (5 … 104 ° F)

Dimensions

185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)

Weight

185 grams (6.5 Oz) with battery

Accessories inside the box

Lanyard
Quick start guide
USB cable

GTIN-13

4820185420358

Note

Specifications are subject to change without notice
Мade in Ukraine
