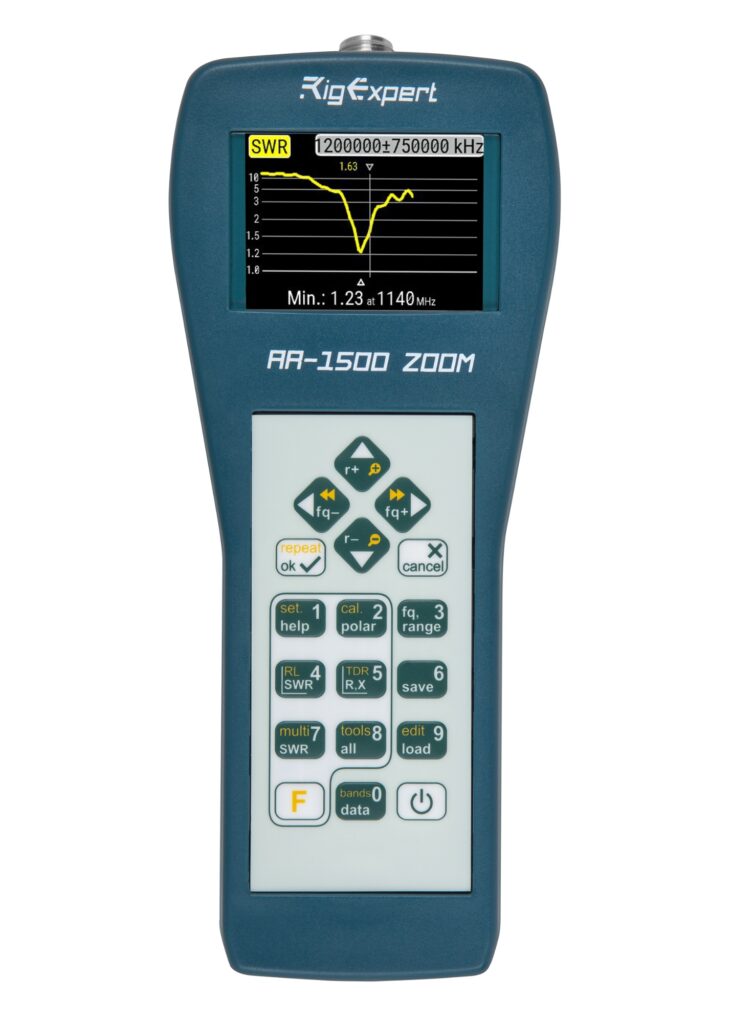

AA-1500 ZOOM

AA-1500 ZOOM

AA-1500 ZOOM

Downloads

AA-1500 ZOOM Antenna and Cable Analyzer Datasheet AA-1500 ZOOM Antenna and Cable Analyzer Manual AntScope2 Software for Linux AntScope2 Software for macOS AntScope2 Software for Windows Flashtool Firmware for macOS Flashtool Firmware for Windows

AA-1500 ZOOM
Specifications

AA-1500 ZOOM
Frequency range
  • 0.1 to 1500 MHz
Frequency entry
  • 1 kHz
Measurement for systems
  • 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
  • 1 to 10 in chart modes
  • 1 to 100 in numerical modes
R and X range
  • 0…2000, -2000…2000
Display modes
  • Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé)
  • Optional open-short-load calibration
  • R, X chart
  • Smith chart
  • SWR at single or multiple frequencies
  • SWR chart
  • TDR chart (Time Domain Reflectometer)
  • User OSL: 10 profiles available
RF output
  • Connector type: N
  • Output power: -10 dBm (at a load of 50 ohms)
  • Output signal shape: square
Power
  • Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
  • Three 1.2V Ni-MH batteries, type AA
  • Three 1.5V alkaline batteries, type AA
  • Three 3.7V LiPo batteries, 14200
  • When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
  • 6x3 keys on the water-proof keypad
  • 800×480 color Blanview® display
  • Bluetooth Specification v.4.2, LE
  • Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German
  • USB connection to a personal computer
Operating temperature
  • 0…40 °C (32…104 °F)
Weight
  • 442 g (15.6 oz)
Dimensions
  • 100 × 230 × 55 mm, (4 × 9 × 2 in)
Accessories inside the box
  • Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
GTIN-13
  • 4820185420310
Note
  • Specifications are subject to change without notice
  • Мade in Ukraine
More
Get ALL you want in ONE

BIG sunlight readable Blanview® display

High contrast with Low Power Consumption

Consistency and accuracy without prior recalibration

Multilingual user-friendly interface

Bluetooth LE for communication with mobile app

Up to three alkaline or rechargeable batteries with voltage from 1.2V to 3.7V

Built-in Helper at the push of a button
