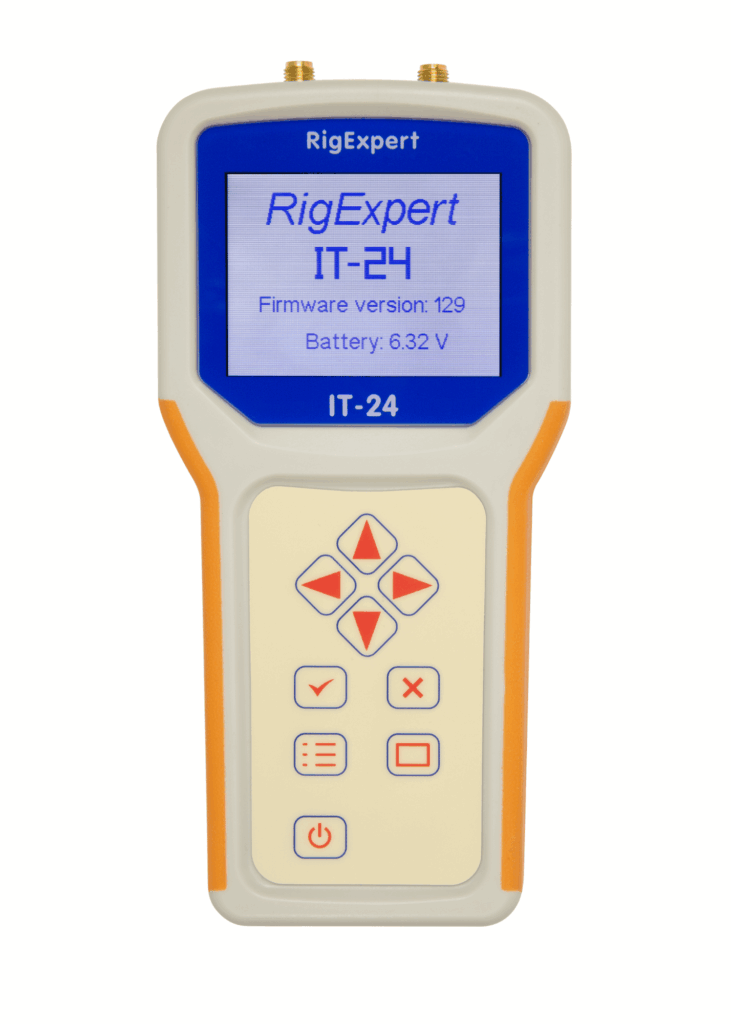

The RigExpert IT-24 is a versatile and portable device designed for testing, tuning, and repairing antennas and antenna feedlines in the 2.4 GHz ISM band. With quick testing capabilities, power measurement features, and RF environment monitoring, the IT-24 is ideal for telecommunication providers, service companies, and antenna/transmitter manufacturers. It supports various technologies such as Wi-Fi, WiMAX, ZigBee, and proprietary data transfer protocols. Equipped with SMA and RP-SMA connectors, a liquid crystal display, and a USB connector, the IT-24 offers convenience and functionality for all your wireless network testing needs.

Unleash the Potential of RF Testing with Unrivaled Accuracy and Flexibility!

Factory calibrated

Multilingual intuitive interface and help screens

Testing antennas and antenna feedlines of the 2.4 GHz ISM band

Quick tests of antennas and RF cables

Output power measurement of wireless access points and other transmitters

RF environment monitoring in spectrum analyzer mode

Suitable for telecommunication providers, service companies, and manufacturers

Compatible with Wi-Fi, WiMAX, ZigBee, and proprietary data transfer protocols

Equipped with SMA and RP-SMA connectors, and USB connector

Waterproof keypad

RigExpertCare - 2 years of Warranty
  • Reliability is in the DNA of RigExpert Antenna and Cable analyzers.
  • RigExpertCare guarantees you two years of service or replacement of the device with a new one of your choice. Services are free.
  • Each RigExpert device goes through four phases of quality control before sending it to the user.
  • That’s why we are confident in the quality of our products.
  • But some integrated circuits may contain a hidden defect that shows up over time.
  • RigExpertCare takes this risk for you.
  • Where to service



Single-point return loss and SWR (standing wave ratio) measurement
Frequency range 2.3–2.6 GHz
Frequency resolution 1 MHz
Return loss measurement range >2 dB
SWR measurement range 1 … 10
Output power in this mode about +5 dBm
Measurement error limits are displayed by the shaded area on the chart. These limits are valid for the 2.4–2.5 GHz range.
SWR graph
4 frequency sub-bands 2.3–2.4 GHz, 2.4–2.5 GHz, 2.5–2.6 GHz, 2.3–2.6 GHz
SWR display range 1… 5
Transmitter power measurement
Frequency range 2.3–2.6 GHz
Power limits -20 … +25 dBm (0.01–300 mW)
Input SWR of the power meter less than 1.5
Measurement error better than ±2 dBm
Spectrum analyzer
Display modes peak and average levels, density graph, waterfall
Frequency range 2.3–2.6 GHz
Bandwidth of sub-bands 100 MHz (5 overlapping sub-bands), 20 MHz (30 overlapping sub-bands), 10 MHz (60 overlapping sub-bands)
Input signal levels about -100 … -20 dBm
Signal level marks 10 dB/div
Receive preamplifier -10 dB, 0 dB, +6 dB
RF connectors RP-SMA for SWR and spectrum modes

SMA for power measurement

Interface Color TFT display, 320·240 pixels

Waterproof keypad, 9 keys

Multi-language menus and help screens

Connecting to a computer via a USB port

Power 4 pieces of AAA rechargeable or alkaline batteries (the charger is not included with the tester; batteries are not charged inside the tester)

From a computer USB socket

Size 17х8х3 cm
Operating temperature 0…40 °C
Weight including batteries 350 g
GTIN-13 4820185420068
