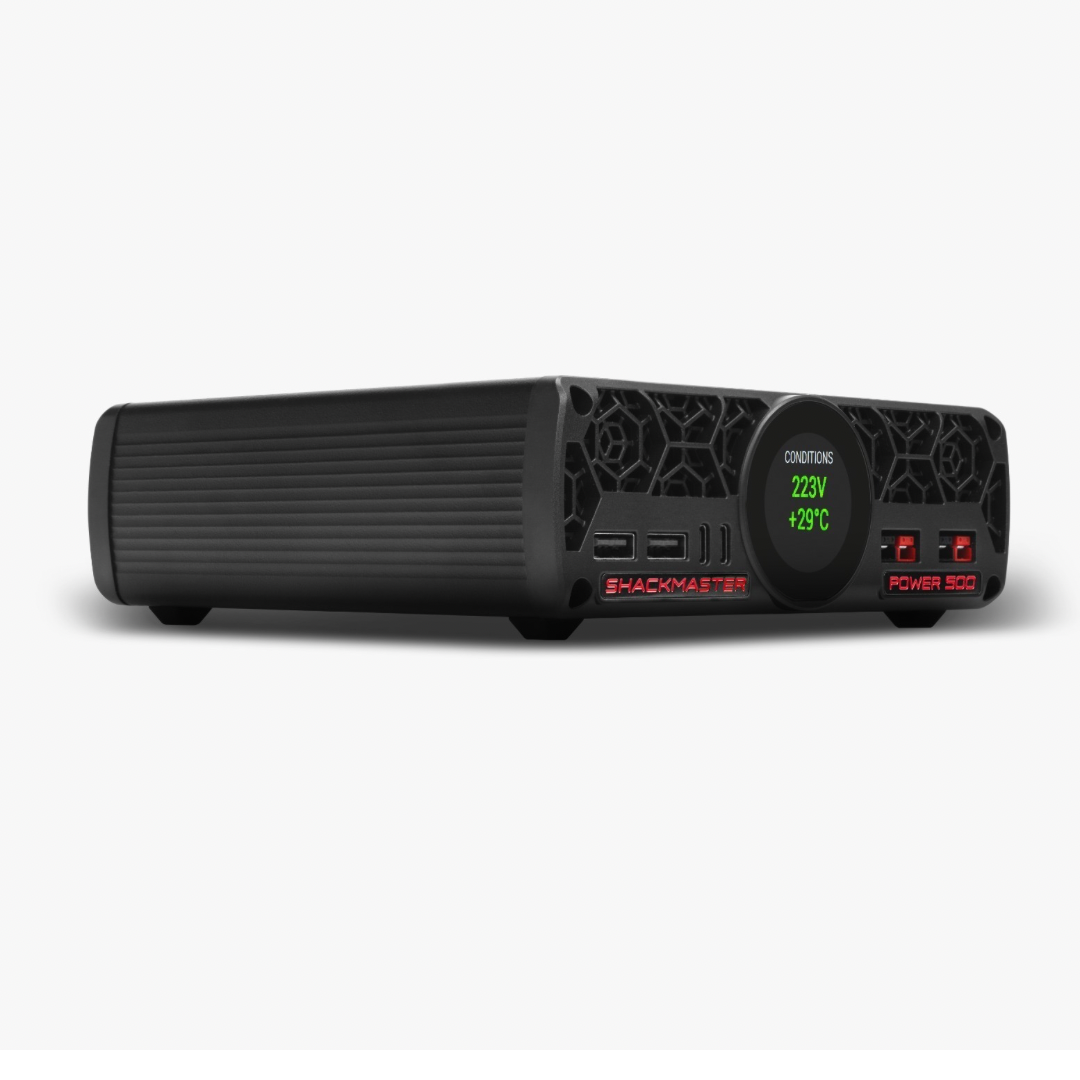

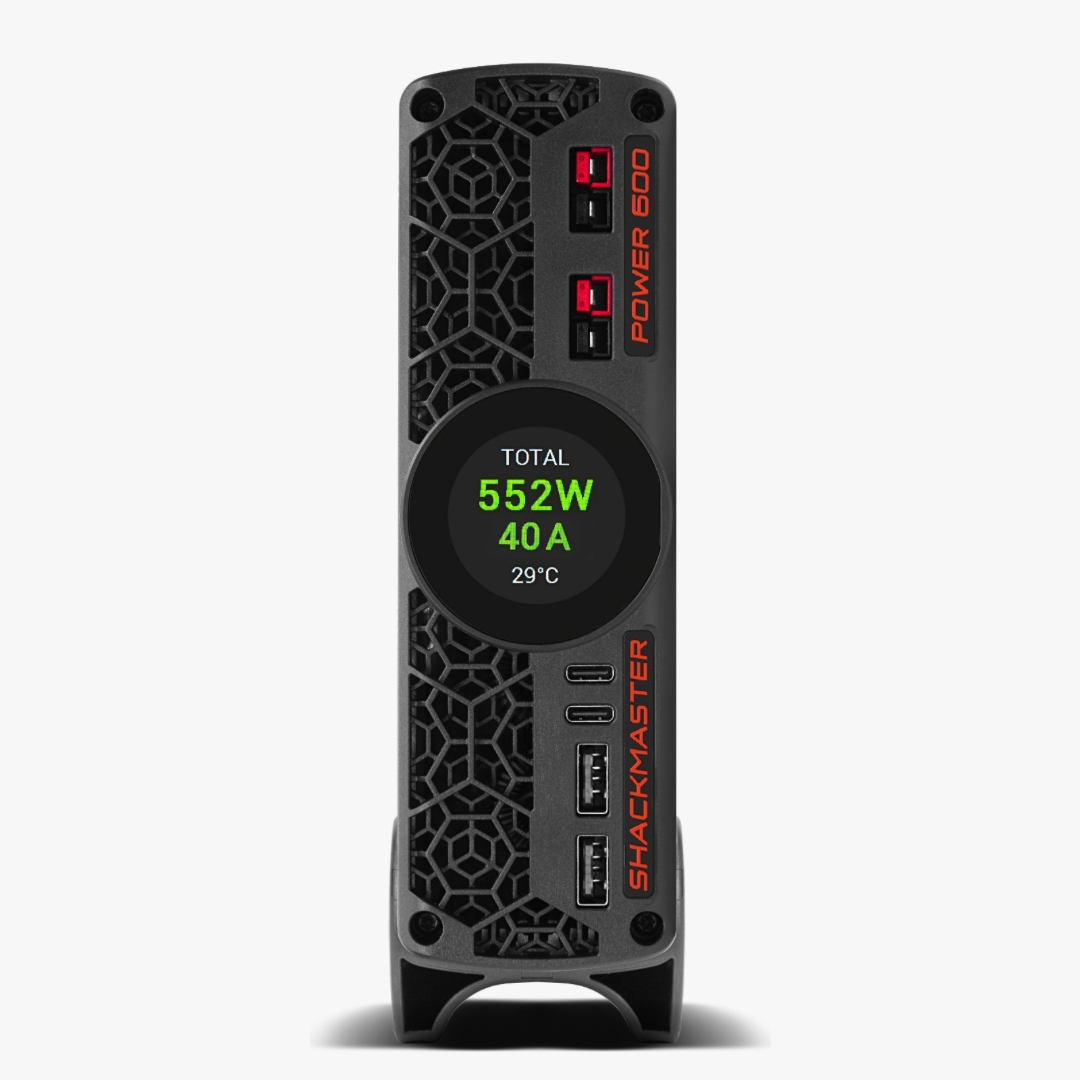

600 W POWER

Compact desktop power supply

600 W POWER

Compact desktop power supply

600 W POWER

Compact desktop power supply

  • Adjustable output voltage, 12-15V, MAX 40A
  • Deadly Quiet
  • Highly Efficient
  • Lightweight and Compact
  • DXpeditions Compatible
  • Tolerant to gasoline generators
  • Saves workspace due to flexible orientation
  • 4 USB ports with Quick Charge 2.0
  • Amateur radio (HAM)
  • Telecom Equipment
  • POE systems
  • Laboratory Equipment
  • Do It Yourself projects
  • Mechanical & electrical equipment

Downloads (docs&software)

Shackmaster Power 600. Power supply. Datasheet. Shackmaster Power 600. Power supply. Manual

ShackPower For Linux ShackPower For MacOS ShackPower For Windows

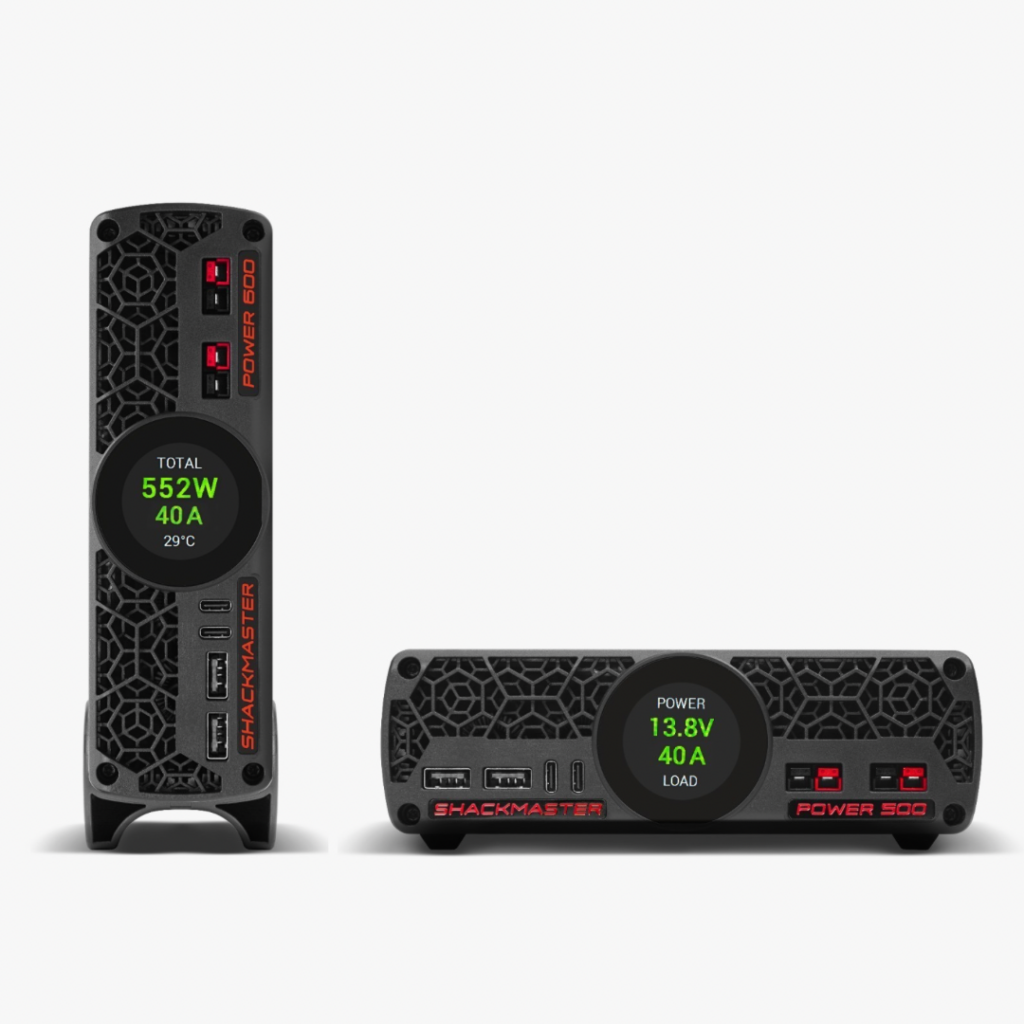

Shackmaster Power 600
Specifications

Shackmaster Power 600
Output voltage
  • 13.8V (12-15V Software adjustable)
Rated power
  • 600W
Rated current
  • 40A
  • total output current is up to 40A across all the outputs. It's recommended to connect loads not exceeding 28A to any single output.
Input voltage range
  • 80V to 264V
Input frequency range
  • 47 Hz to 63 Hz
Acoustic noise
  • ~21 dB
Overvoltage protection
  • Yes
Overcurrent protection
  • Yes
Short circuit protection
  • Yes
EMI noise
  • 200mVp-p
Storage temperature range
  • -40°C to +85°C
  • -40°F to +185°F
Energy Conversion Efficiency (ECE)
  • > 90% (Heat dissipation at maximum load < 60 W)
Ports on the front panel
  • 2 x 3A USB A Charging Ports
  • 2 x 3A USB Type-C Charging Ports
  • 2 x 45A Anderson Power Poles
Ports on the rear panel
  • 1 x 30A Binding Post
  • 1 x USB Type-C for PC Communication
  • 2 х 45A Anderson Power Pole
Dimensions
  • 172 mm x 55 mm x 185 mm
Weight
  • 1,1 kg
More
Shackmaster Power 600:
Tame the Real Power

Safety: The Intelligent Protection System protects your devices from damage

Potent Power Delivery: Revel in an amped-up 600W power output

Nonstop rapid charging: 4 USB ports with Quick Charge QS2.0 power up multiple gadgets

Custom voltage setting: Adjustable Output Voltage allows easy modification of the power supply to match the characteristics of different devices

Quiet Operation: The low EMI and acoustic noise minimize distractions

Convenience: The touchscreen display and USB interface make it easy to control and monitor the power supply

Durability: The sleek design and sturdy construction make it a reliable investment

High Performance: Automatic Cooling System constantly maintains the perfect temperature

Flexibility: The flexible orientation and multiple connectivity options make it easy to use
